Window
Features
Windows are applied to isolate different physical environments while allowing light pass.
When selecting windows we should consider materials,transmission, scattering,
wavefront distortion, parallelism and resistance to certain environment.

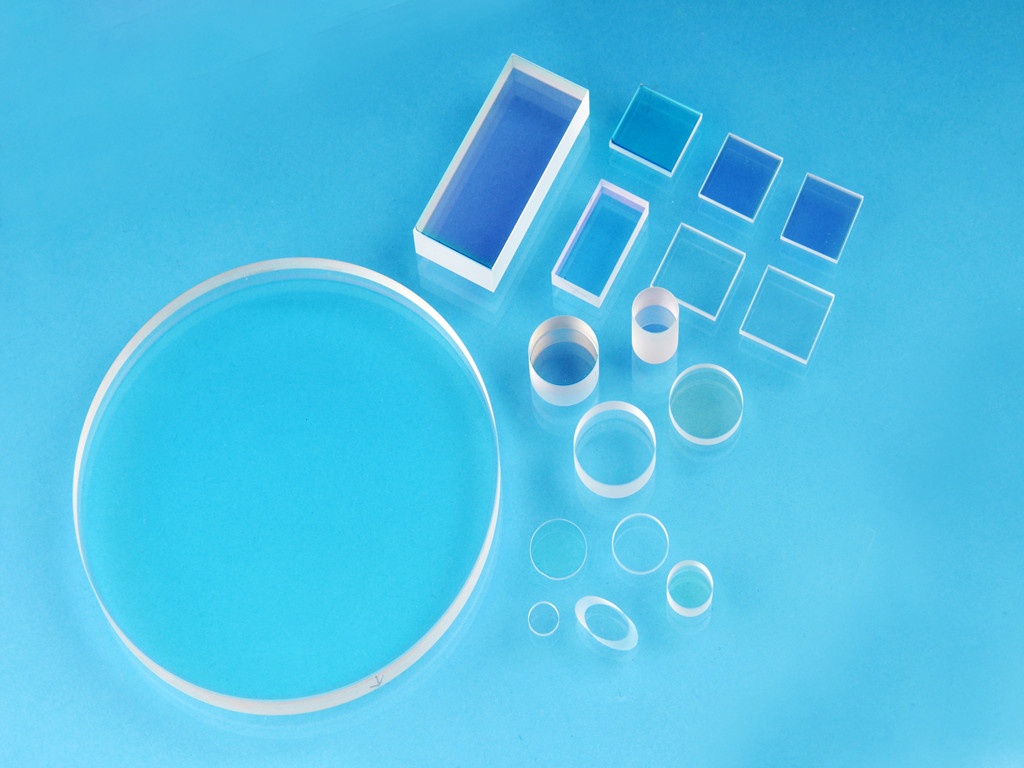

We offer a wide range of different materials including optical glass, Ge, Si,
MgF2, CaF2, Sapphire and other materials with different sizes available upon request.
Specifications
Windows
Specifications |
|
Material |
optical glass, fused silica, CaF2, MgF2, ZnSe, Ge, Si, Sapphire
|
Parallelism |
10″or 1′ |
Diameter Tolerance |
+0.0/-0.1mm |
Surface Quality |
20-10 scratch and dig |
Thickness Tolerance |
±0.2mm |
Wavefront Distortion |
λ/10 per 25mm |
Clear Aperture |
>80% |
Bevel |
<0.5mm×45° |
Note: Dimension and specification are available upon requests.
