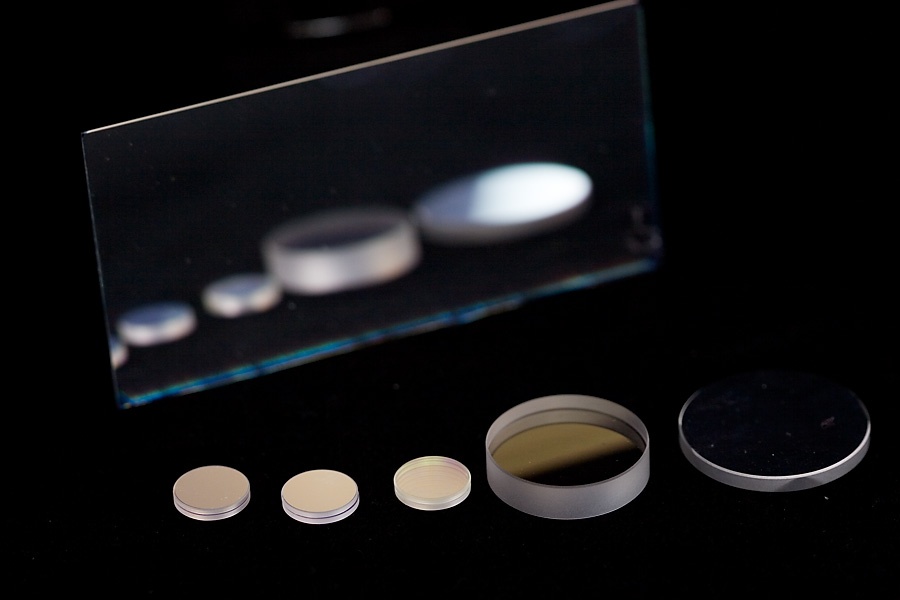

Mirrors

Mirrors

Mirrors



Details


Features

Several kinds of coatings are available The broad bandwidth mirrors are enhanced aluminium coated under a layer of. Sio2 protective film. The reflectance peaks at about 95% and the wavelength range from visible to FIR(0.35-12μm).Furthermore the metallic coating is not angle-sensitive. The laser line mirrors are multilayer dielectric coated, optimized for the preferred wavelength and incident angle. The central wavelength, incident angle and coating requirements should be specified at placing an order. These mirrors can be ordered with or without mountings.

Specifications

Pumping Beam and Basic Frequency Laser mirror

Specifications

Substrate Material

UV Grade Fused Silica or BK7 or Nd:YAG laser crystal

Surface Figure

λ/10 typical at 633nm

Transmitted wavefront distortion

λ/10 typical at 633nm

Surface Quality

20/10laser quality

Diameter Tolerance

+0.0mm~-0.25mm

Thickness Tolerance

±0.25mm

Wedge

≤5 minutes

Chamfer

0.25mm at 45° typical

Concentricity

≤0.05mm

Radius Tolerance

±0.5%

Coating Technology

Electron Beam Evaporation, Dielectric Mulitlayers

Adhesion and Durability

Per MIL-C-675A. Insoluble in lab solvents

Clear Aperture

>85% of dimension

Angle of Incidence

Wavelength Range

248~2100nm

Transmittance

>97%

Reflectance

>99.8%

Laser Induced Damage Threshold

3J/cm2 , 1 ns pulse, at 1064nm typical

Substrate Diameter(mm)

10, 12.7, 15, 20, 25, 25.4, 30

Note: Other dimension and specification are available upon requests.
